Challange
An old zinc tray roof system failed to keep this beautiful Queenstown home dry and warm, but instead of re-roofing with the same product, the architect chose to look elsewhere. It was important to the homeowner and architect that the replacement product was able to maintain the aesthetic of the zinc standing seam, but also provide the home with an extremely robust waterproofing finish.
Solution

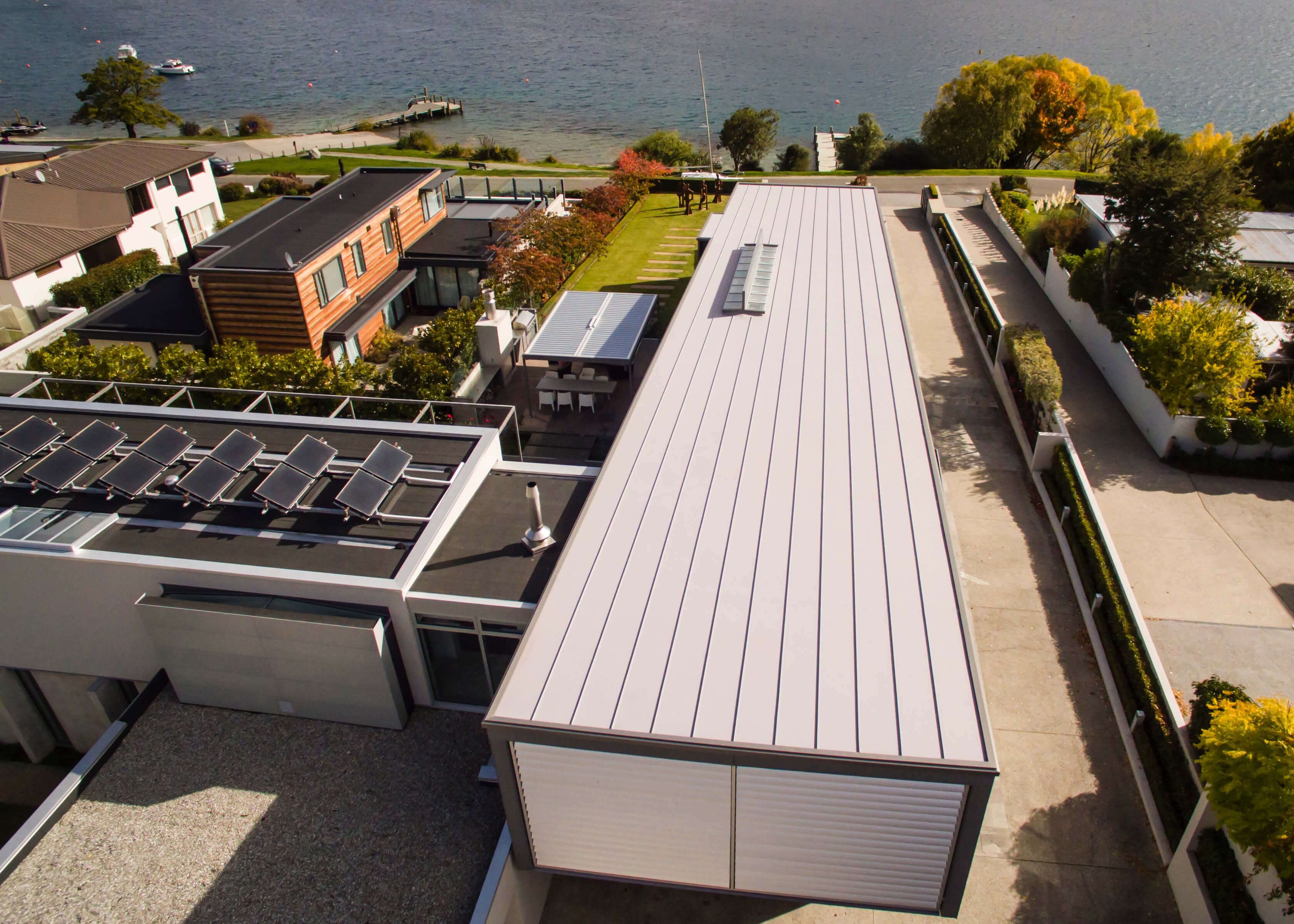

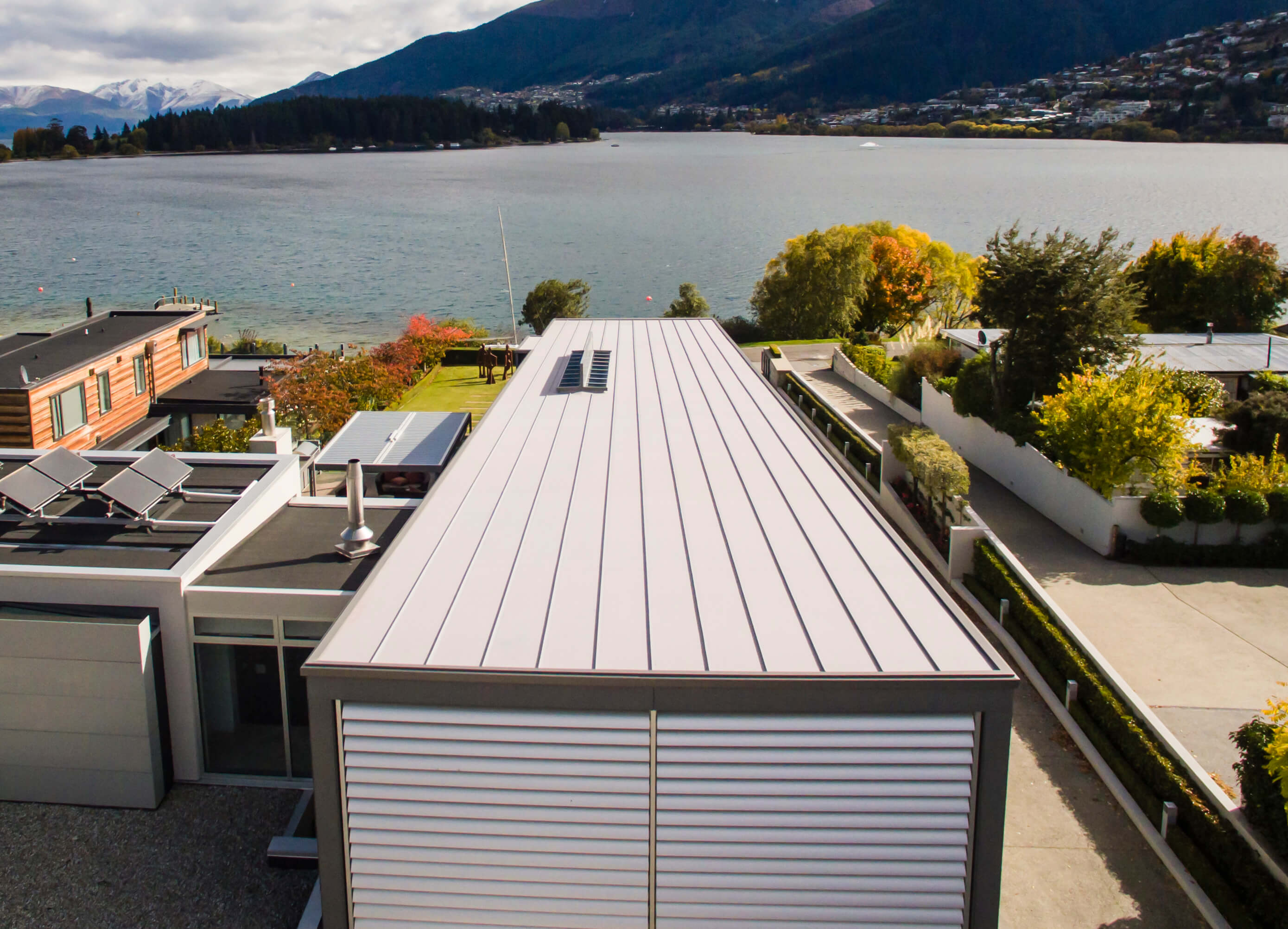

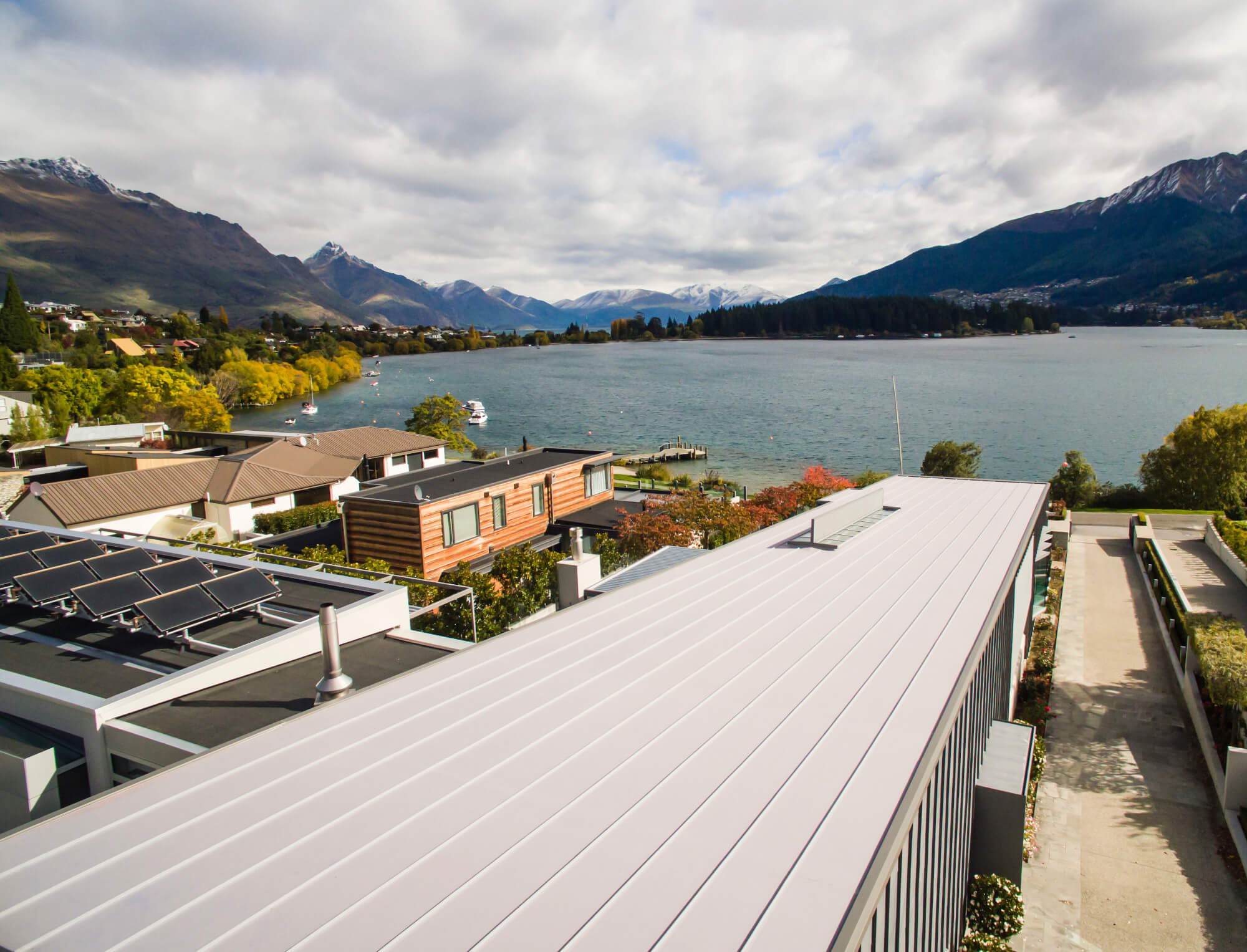

After discussions with all stakeholders involved, the decision was made to remove the zinc tray roof and overlay the existing plywood substrate with Viking’s WarmRoof system; to add thermal resistance, and Viking Enviroclad as the waterproofing membrane. In order to emulate the zinc tray look, Viking’s TPO weldable ribs were heat welded in equi-distant rows on top of the Enviroclad membrane; replicating the standing seam profile. With the property being in Climate zone 3, a vapour barrier had to be installed on-top of the plywood substrate.
Being 30 meters in length, full 30.4m rolls of Enviroclad proved the perfect length; resulting in no end-laps. It was then finished off with the welding of the TPO ribs.
